Recommended spare parts overview for Edge-Sweets high-density slitters

Sort by:

Stripper Guide Jaw & Shim Assembly

210920191 Jaws Assembly [Pair] : 210440051 + 210440050Shim [0.025IN] : 110940290 JAW LENGTH : 2.38INSHIM THICKNESS : 0.025IN APPLICABLE MACHINERY : SHR 60-20, HT 51-88, EL-4, WHDS-54, WHDS-62, HT-C-51-118, HT-C-60-118, HT-C-60-88, HT...
$40.13
3IN Table Wheel - Front 3IN Table Wheel - Side

3IN Table Wheel

3" [76mm] OD Nylon Table Wheel OUTER DIAMETER : 3ININNER DIAMETER : 2.045INBORE : 1INWIDTH : 1INAPPLICABLE MACHINERY : 50-88, 60-88, AV-3, AV-4, HT 51-88, HT 60-88, WHDS-54, SHR 60-20, PMIII, HTX 60-88, HTX 51-88EDGE-SWEETS PN : 743540012
$90.81

Idler Spindle Adjustment Lock Screw

210940151 3/8-16 Hex Head Bolt, 7IN length. DIAMETER : 3/16INLENGTH : 7INAPPLICABLE MACHINERY : AV-2, AV-3, AV-4, AV-5, AV-6, LVR-1, LVR-3, LVR-5, LVR-6, LVR-7, LVR-8, LVR-10, F-24, F-30, 50-88, 60-88, 60-36, 60-96, 10-36,...
$33.10
6000-2RSC3 Bearing - Front 6000-2RSC3 Bearing - Side

6000-2RSC3 Bearing

6000-2RSC3 Ball Bearing BORE : 10MMOUTER DIAMETER : 26MMWIDTH : 8MMRATING : ABEC 1APPLICABLE MACHINERY : PMIII, 50-88, 60-88, 60-96, EL-1, EL-3, EL-4, CL-1, CL-2, CL-3, CL-3P, CL-4, HPX 50-88, HP...
$2.35
Borazon Grinding Wheel - 60 Grit Borazon Grinding Wheel - 60 Grit

Borazon Grinding Wheel - 60 Grit

60 Grit Grinding Wheel Commonly found in older Edge-Sweets Company machinery with blade sharpening systems DIAMETER : 5INDEPTH : 10MMBORE : 1/2INAPPLICABLE MACHINERY : HT 51-88, HT 60-88, HT 60-96, HT-C 51-88, HT-C 51-118, HT-C 60-118,...
$295.00

Blade Guide - Horizontal

NON-RETURNABLE SPECIAL ORDER ITEM *Certain Stripper Guide sizes MUST be purchased through Edge-Sweets Parts. If a guide is in-stock, but you can't checkout call 616-453-5458  [Part Number] : [Width] X [Thickness]...
$780.65
Cam Yoke Roller Bearing - Front Cam Yoke Roller Bearing - Side

Cam Yoke Roller Bearing

Cylindrical Yoke Roller DIAMETER : 1.25INBORE : 0.375INWIDTH : 0.75INOVERALL WIDTH : 0.8125IN APPLICABLE MACHINERY : MODEL 10-48, MODEL 10-72, MODEL 10-84, A-2, AVB, 50-88, 60-88, DPW 50-88, HT 51-88, HT 60-88,...
$40.70

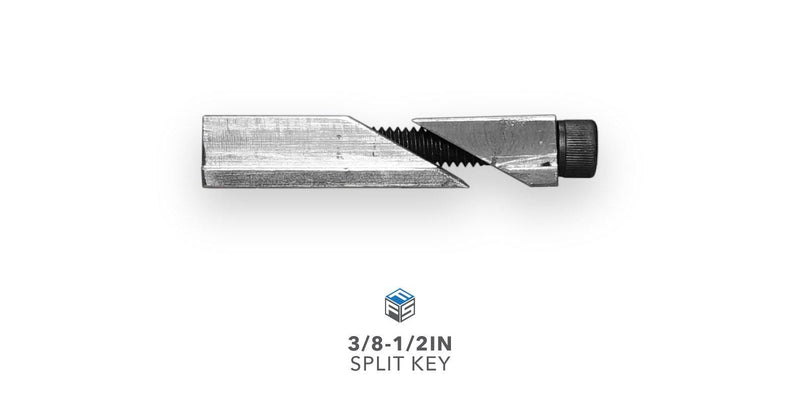

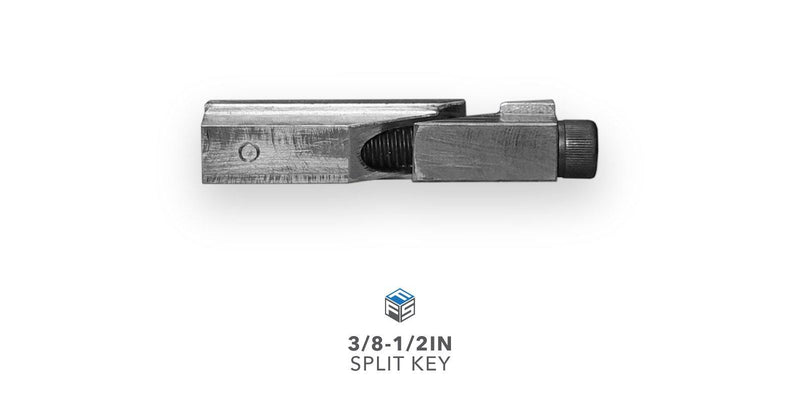

3/8-1/2IN Split Key - Side View 3/8-1/2IN Split Key - Top View

3/8-1/2IN Split Key

3/8-1/2IN Split Key for drive wheels APPLICABLE MACHINERY : HT 60-88, HT 51-88, HT-C-51-118, WHDS-54, RSS-C-60, RSS-C-84, RSS-C-92EDGE-SWEETS PN : 111740050
$175.00

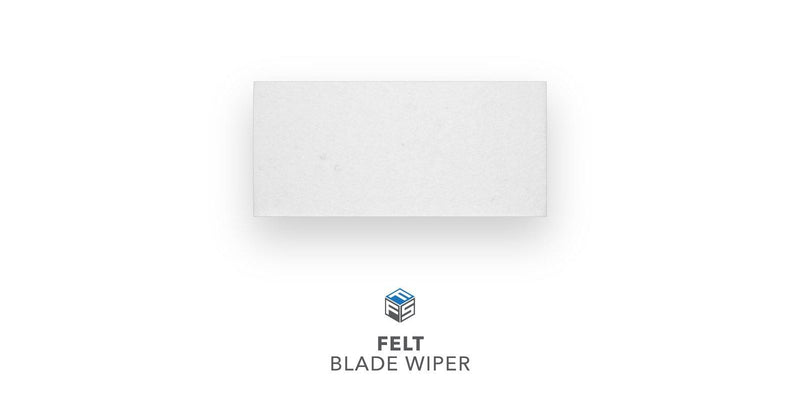

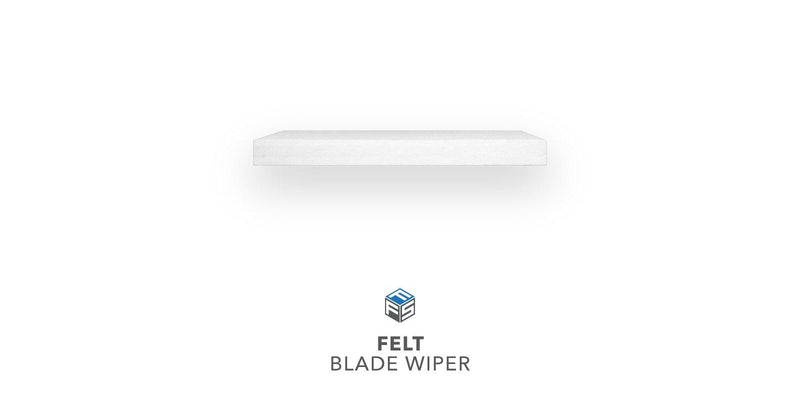

Felt Blade Wiper - Top Felt Blade Wiper - Side

Felt Blade Wiper

Felt Blade Wiper LENGTH : 5INWIDTH : 2.25INTHICKNESS : .47INAPPLICABLE MACHINERY : HTX 51-88, HTX-C-60-118, HP 50-88, VPX 50-88, WHDS-54EDGE-SWEETS PN : 111242390
$34.90
16IN Wheel - Heavy Duty - Front 16IN Wheel - Heavy Duty - Side

16IN Wheel - Heavy Duty

16 Inch aluminum drive wheel with urethane tire and 3.5IN bore. DIAMETER : 16INBORE : 3.5INWIDTH : 2IN APPLICABLE MACHINERY : RSS-C-60, RSS-C-84, RSS-C-92, HT 60-88, HT 51-88, HT-C-51-118, HT-C-60-118, HT-C-51-88, HT-C-60-88, WHDS-54, WHDS-62EDGE-SWEETS PN : 310140000
$778.30
